standard-20









Standard 20’

Inside Inside Inside Door Door Capacity Tare Weight Maxi Cargo
Length Width Height Width Height
19’ 4” 7’ 8” 7’ 10” 7’ 8” 7’ 6” 1,172 Cft 4,916 Lbs 47,900 Lbs
5.900 m 2.350 m 2.393 m 2.342 m 2.280 m 33.2 Cu.m 2,230 Kgs 21,770 Kgs
Standard 40’
39’ 5” 7’ 8” 7’ 10” 7’ 8” 7’ 6” 2,390 Cft 8,160 Lbs 59,040 Lbs
12.036 m 2.350 m 2.392 m 2.340 m 2.280 m 67.7 Cu.m 3,700 Kgs 26,780 Kgs





Upgraded-20

Upgraded 20’

19’ 4” 7’ 7” 7’ 10” 7’ 6” 7’ 6” 1,150 Cft 5,060 Lbs 61,996 Lbs
5.900 m 2.311 m 2.390 m 2.286 m 2.280 m 32.63 Cu.m 2,300 Kgs 28,180 Kgs
High Cube 40’
39’ 5” 7’ 8” 8’ 10” 7’ 8” 8’ 5” 2,694 Cft 8,750 Lbs 58,450 Lbs
12.036 m 2.350 m 2.697 m 2.338 m 2.585 m 76.3 Cu.m 3,970 Kgs 26,510 Kgs

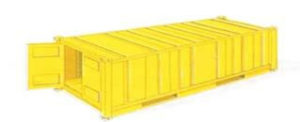

Reefer-20

Reefer 20’

17’ 8” 7’ 5” 7’ 5” 7’ 5” 7’ 3” 1,000Cft 7,040 Lbs 45,760 Lbs
5.425 m 2.275 m 2.260 m 2.258 m 2.216 m 28.3 Cu.m 3,200 Kgs 20,800 Kgs
Reefer 40’
37’ 8” 7’ 5” 7’ 2” 7’ 5” 7’ 10” 2,040 Cft 10,780 Lbs 56,276 Lbs
11.493 m 2.270 m 2.197 m 2.282 m 2.155 m 57,8 Cu.m 4,900 Kgs 25,580 Kgs
Reefer 40’ High Cube
37’ 11” 7’ 6” 8’ 2” 7’ 6” 8’ 0” 2.344 Cft 9,900 Lbs 57,561 Lbs
11.557 m 2.294 m 2.500 m 2.294 m 2.440 m 66.6 Cu.m 4,500 Kgs 25,980 Kgs

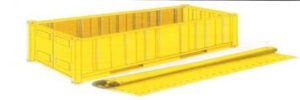

Open-Top-20

Open Top 20’

19’ 4” 7’ 7” 7’ 8” 7’ 6” 7’ 2” 1,136 Cft 5,280Lbs 47,620 Lbs
5.894 m 2.311 m 2.354 m 2.286 m 2.184 m 32.23 Cu.m 2,400 Kgs 21,600 Kgs
Open Top 40’
39’ 5” 7’ 8” 7’ 8” 7’ 8” 7’ 5” 2,350 Cft 8,490 Lbs 58,710 Lbs
12.028 m 2.350 m 2.345 m 2.341 m 2.274 m 65.5 Cu.m 3,850 Kgs 26,630 Kgs

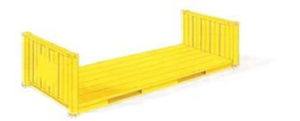

Flat-Rack-20

Flat Rack 20’

Inside Inside Inside Door Door Capacity Tare Weight Maxi Cargo
Length Width Height Width Height
18’ 5” 7’ 3” 7’ 4” 5,578 Lbs 47,333 Lbs
5.620 m 2.200 m 2.233 m 2,530 Kgs 21,470 Kgs
Flat Rack 40’
39’ 7” 6’ 10” 6’ 5” 12,081 Lbs 85,800 Lbs
12.080 m 2.438 m 2.103 m 5,480 Kgs 39,000 Kgs



Flat-Rack-Collapsible-20

Flat Rack Collapsible 20’

18’ 6” 7’ 3” 7’ 4” 6,601 Lbs 61,117 Lbs
5.618 m 2.208 m 2.233 m 2,750 Kgs 27,730 Kgs
Flat Rack Collapsible 40’ (Stalk Bed)
39’ 7” 6’ 10” 6’ 5” 12,787 Lbs 85,800 Lbs
12.080 m 2.126 m 2.043 m 5,800 Kgs 39,000 Kgs





Platform-20

Platform 20’

19’ 11” 8’ 0” 7’ 4” 6.061 Lbs 52,896 Lbs
6.058 m 2.438 m 2.233 m 2.750 Kgs 24,000 Kgs
Platform 40’
40’ 0” 8’ 0” 6’ 5” 12,783 Lbs 86,397 Lbs
12.18 m 2.40 m 1.95 m 5,800 Kgs 39,200 Kgs



Chassis 33’ Tri- Axle

Length TARE Weight Maxi Cargo
Overall 10.900 Lbs 44,500Lbs
Extended
41’ 3”
Lunghezza 4.950 Kgs 20.185 Kgs
massima



Chassis 40’ Gooseneck

Length TARE Weight Maxi Cargo
Overall 6,500 Lbs 44,500 Lbs
Extended
41’ 3”
Lunghezza 2.950 Kgs 20.185 Kgs
massima

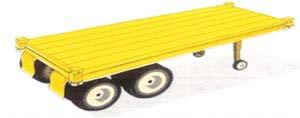

Chassis-235

Chassis 23,5’

Length TARE Weight Maxi Cargo
Overall Unextended 23’ 6” 6,600 Lbs 35,500Lbs
Overall Extended 27’ 2” 6,600Lbs 39,500Lbs
Lungh. massima esteso 2.995 Kgs 16.100 Kgs
7,20 m
Lungh. massima esteso 2.995 Kgs 17.920 Kgs
